CooperationItem | Specifications |
步距角精度Step Angle Accuracy | ±7% (整步，空載full step, no load) |
電阻公差Resistance Accuracy | ±10% |
電感公差Inductance Accuracy | ±20% |
溫升Temperature Rise | 65K Max. ambient temperature 40。C 65K 環境溫度40℃ |
環境溫度Ambient Temperature | -10。C~+50。C |
絕緣電阻Insulation Resistance | 100MΩMin. ,500VDC |
絕緣等級Insulation Class | Class E |
介電強度Dielectric Strength | 650VAC for one second, leakage current 1mA 650VAC 一秒， 漏電電流1mA |
型號 Model | 步距角 Step Angle (Deg.) | 相數 No. of Phase | 電壓 Voltage (V) | 相電流 Current /Phase (A) | 相電阻 Resistance /Phase (ohms) | 相電感 Inductance /Phase (mH) | 牽入力矩Pull-in Torque (g.cm) 5VDC | 最大牽入頻率 Max. Pull-In Rate (pps) No Load, 5VDC | 保持力矩 Holding Torque (g.cm) | 減速比 Ratio | 重量 Weight
(g)
|

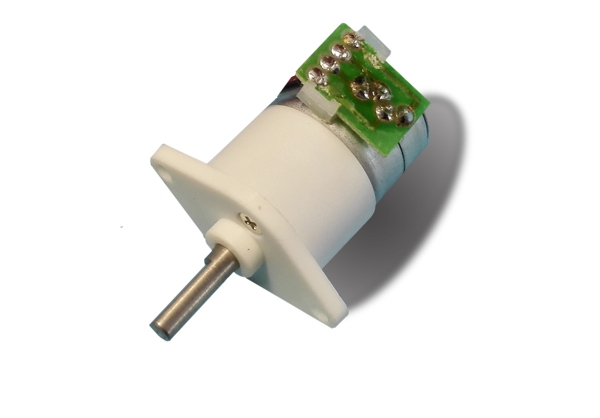

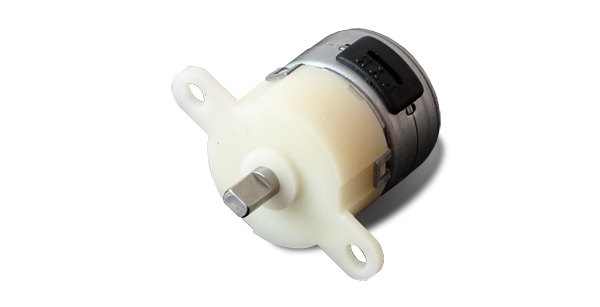

PMG1550-01 | 18/50 | 2 | 5 | 0.5 | 10 | 2.3 | 360 @200pps | 1280 | 1350 | 1:50 | 12.2 |
PMG1550-03 | 18/50 | 2 | 5 | 0.5 | 10 | 2.8 | 140 @200pps | 1150 | 2000 | 1:50 | 13 |
PMG15102-01 | 18/102.5 | 2 | 5 | 0.5 | 10 | 2.3 | 350 @200pps | 1000 | 2000 | 1:102.5 | 12.2 |
該款電機可以根據客戶需求定制。
The motor can be designed &manufactured with customized request.
