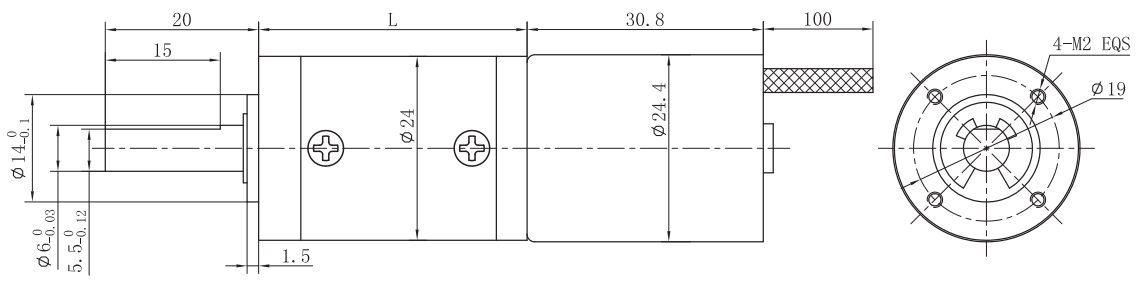

Overall Dimensions
Download
CooperationBLDC Planetary Gear Motor （Ring Gear Material: Metal and Powder）
| 型號 | 范圍 |
| FL24CBL30/24JN10K | Φ24行星減速器，允許轉矩范圍：0.1N.m~1.0N.m 24mm OD Planetary Gearbox,Permissible Load Range:0.1N.m~1.0N.m |
| U | V | W | Vcc | Ha | Hb | Hc | GND |
| 黃 | 紅 | 黑 | 紅 | 藍 | 綠 | 白 | 黑 |
| Yellow | Red | Black | Red | Blue | Green | White | Black |
| UL1430 AWG26 | UL1430 AWG28 | ||||||
| 電機型號 | 極 數 | 相 數 | 額定電壓 | 空載轉速 | 額定轉速 | 額定轉矩 | 額定功率 | 峰值轉矩 | 峰值電流 | 電 阻 | 電 感 |
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| VDC | r/min | r/min | mN.m | W | mN.m | A | ohms | mH | |||
| FL24CBL30-1250 | 12 | 3 | 12 | 5000 | 4000 | 5.7 | 2.4 | 17.1 | 0.9 | 7.3 | 1.7 |
配置FL24CBL30-1250無刷電機 FL24CBL30-1250 BLDC Motor
| 減 速 比 Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 | |
| 減速級數 Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
| 減速器長度(L) Length(L) | mm | 25 | 25 | 31.6 | 31.6 | 31.6 | 38 | 38 | 38 | 38 | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 |
| 空載轉速 No-load speed | r/min | 1348 | 965 | 357 | 263 | 185 | 98 | 70 | 50 | 36 | 26 | 19 | 14 | 10 | 7 |
| 額定轉速 Rated speed | r/min | 1078 | 772 | 286 | 211 | 148 | 78 | 56 | 40 | 29 | 21 | 15 | 11 | 7.8 | 5.6 |
| 額定轉矩 Rated torque | N.m | 0.019 | 0.027 | 0.065 | 0.088 | 0.12 | 0.21 | 0.3 | 0.42 | 0.58 | 0.7 | 1 | 1 | 1 | 1 |
| 最大瞬間允許負載Max. permissible load in a short time | N.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.4 | 2.4 | 2.4 | 2.4 | 3 | 3 | 3 | 3 | 3 |
