Product Planetary gearbox

57mm standard brushless motor with 56mm planetary gearbox

option:

Inquiry Contact

BLDC Planetary Gear Moto （Ring Gear Material: Metal）

型號

范圍

FL57BL/56JM300K

Φ57減速器，允許轉矩范圍：3N.m~30N.m

57mm OD Planetary Gearbox, Permissible Load Range:3N.m~30N.m

配置FL57BLS54-3650無刷直流電機 (LD=53.6mm) FL57BLS54-3650 DC Brushless Motor(LD=53.6mm)

減速比 Reduction ratio	3.6	4.25	5.33	13	15	18	23	28	43	52	61	72	96	121	154	187	220
減速級數 Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	3	4	4	4
減速器長度(L) Length(L) mm	37.8	37.8	37.8	49.5	49.5	49.5	49.5	49.5	60.8	60.8	60.8	60.8	60.8	60.8	71.9	71.9	71.9
額定轉速 Rated speed r/min	111	941	750	308	267	222	174	143	93	77	66	56	42	33	26	21	18
額定轉矩 Rated torque N.m	0.36	0.42	0.53	1.2	1.3	1.6	2	2.5	3.5	4.2	4.9	5.8	7.7	9.7	11	13	16
最大瞬間允許負載N.m Max. permissible load in a short time	9	9	9	36	36	36	36	36	72	72	72	72	72	72	90	90	90

配置FL57BLS74-3650無刷直流電機 (LD=73.6mm) FL57BLS74-3650 DC Brushless Motor(LD=73.6mm)

減速比 Reduction ratio	3.6	4.25	5.33	13	15	18	23	28	43	52	61	72	96	121	154	187	220
減速級數 Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	3	4	4	4
減速器長度(L) Length(L) mm	37.8	37.8	37.8	49.5	49.5	49.5	49.5	49.5	60.8	60.8	60.8	60.8	60.8	60.8	71.9	71.9	71.9
額定轉速 Rated speed r/min	111	941	750	308	267	222	174	143	93	77	66	56	42	33	26	21	18
額定轉矩 Rated torque N.m	0.71	0.84	1.1	2.3	2.7	3.2	4.1	5	6.9	8.4	9.8	12	15	19	22	27	30
最大瞬間允許負載N.m Max. permissible load in a short time	9	9	9	36	36	36	36	36	72	72	72	72	72	72	90	90	90

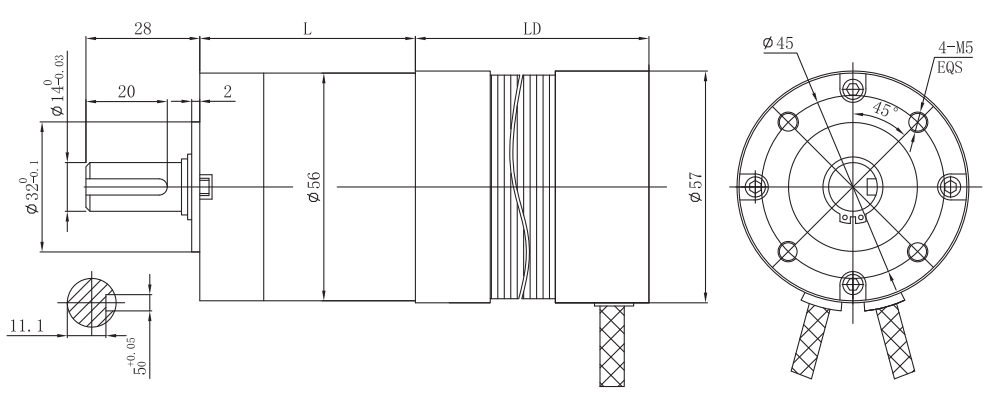

Motor size

Download
