Cooperation1. Specifications
| Model | WS55L-07A250C-MGGA03 |
| Diameter Size | 140mm |
| Rated Voltage | 36VDC |
| Rated Current | 7 Arms |
| Maximum speed | 250rpm(Line speed 2m/s) |
| Rated Torque | 7 N.m |
| Peak Torque | 18 N.m |
| Operating Temperature | -10℃～40℃（Non-freezing） |
| Operating Humidity | 5～95%RH（Non-condensing） |
| Storage Temperature | -10℃～70℃（Non-freezing） |
| Storage Humidity | Below 90%RH（Non-condensing） |
| Protection Class | Ip67 except shaft |
| Weight | 3.2Kg |
| Suggested Load (2 PCS) | Below 140kg |

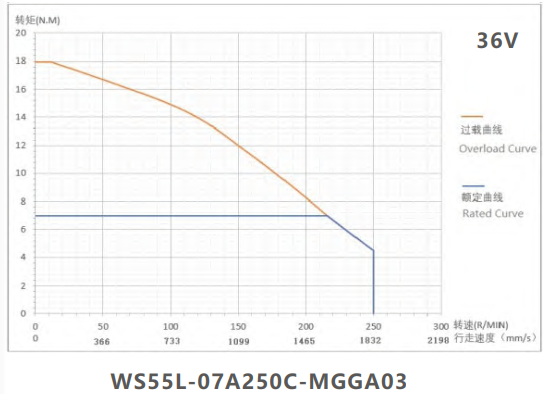

2. Torque Curve
| IWS Series Hub Motor Motor User Manual - Fulling Motor | 1.1 MB |
|
