Product Planetary gearbox

90mm outer rotor brushless motor with 56mm planetary gearbox

option:

Inquiry Contact

BLDC Planetary Gear Moto （Ring Gear Material: Metal）

型號

范圍

FL90BLW27/56JM450K

Φ56減速器，允許轉矩范圍：4.0N.m~45N.m

56mm OD Planetary Gearbox, Permissible Load Range: 4.0N.m~45N.m

配置FL90BLW27-24V-37130A無刷直流電機(LD=27mm) FL90BLW27-24V-37130A BLDC Motor(LD=27mm)

減速比 Reduction ratio		3.6	4.25	5.33	13	15	18	23	28	43	52	61	72	96	121	154	187
減速級數 Number of gear trains		1	1	1	2	2	2	2	2	3	3	3	3	3	3	4	4
減速器長度(L) Length(L)	mm	40.3	40.3	40.3	53.8	53.8	53.8	53.8	53.8	67.2	67.2	67.2	67.2	67.2	67.2	80.6	80.6
額定轉速 Rated speed	r/min	750	635	507	208	180	150	117	96	63	52	44	38	28	22	18	14
額定轉矩 Rated torque	N.m	1.5	1.8	2	4.8	5.6	6.7	8.5	10	14	17	20	24	32	36	45	45
最大瞬間允許負載Max. permissible load in a short time	N.m	12	12	12	36	36	36	36	36	72	72	72	72	72	72	90	90

配置FL90BLW40-48V-16170A無刷直流電機(LD=40mm) FL90BLW40-48V-16170A BLDC Motor(LD=40mm)

減速比 Reduction ratio		3.6	4.25	5.33	13	15	18	23	28	43	52	61	72	96
減速級數 Number of gear trains		1	1	1	2	2	2	2	2	3	3	3	3	3
減速器長度(L) Length(L)	mm	40.3	40.3	40.3	53.8	53.8	53.8	53.8	53.8	67.2	67.2	67.2	67.2	67.2
額定轉速 Rated speed	r/min	464	393	313	128	111	93	73	60	39	32	27	23	17
額定轉矩 Rated torque	N.m	3.1	3.7	4.2	10	12	14	18	22	30	37	43	45	45
最大瞬間允許負載Max. permissible load in a short time	N.m	12	12	12	36	36	36	36	36	72	72	90	90	90

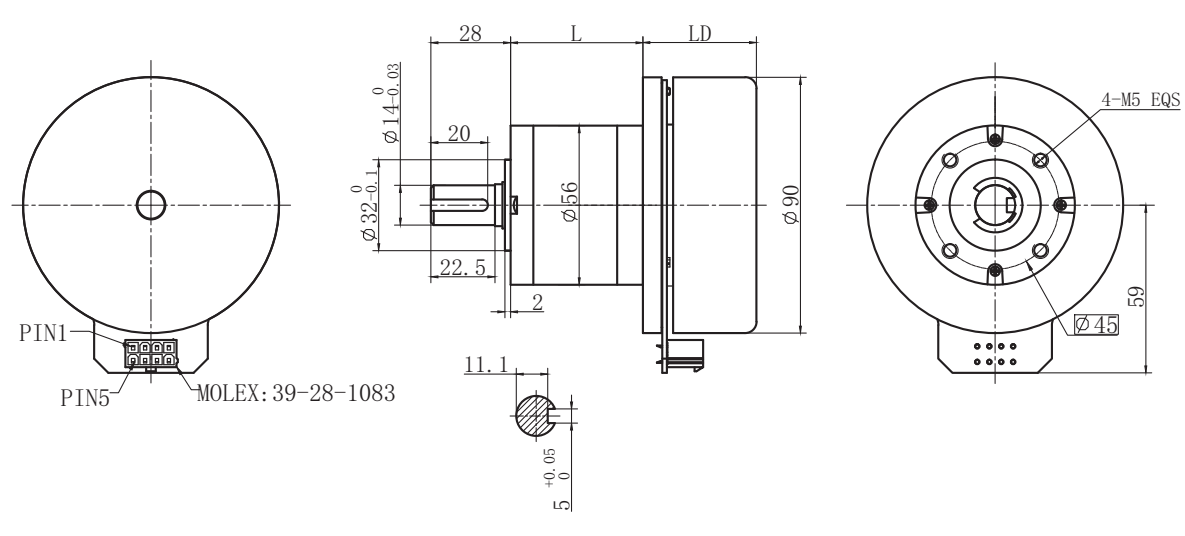

Motor size

Download
