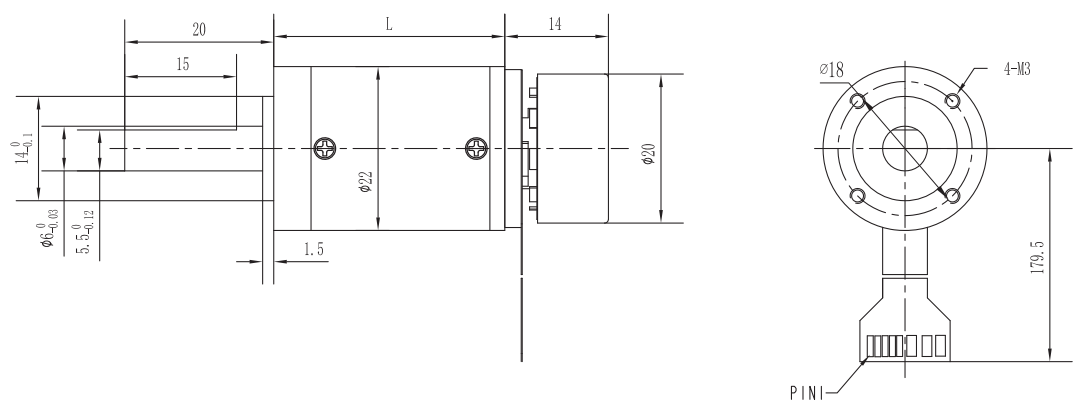

外形尺寸
資料下載
聯系合作BLDC Planetary Gear Moto （Ring Gear Material: Metal）
| 型號 | 范圍 |
| FL20BLW14/22JM15K | Φ22減速器，允許轉矩范圍：0.15N.m~1.5N.m 22mm OD Planetary Gearbox, Permissible Load Range:0.15N.m~1.5N.m |
| 接插件Connector | 插針號Pin | 功 能Functions | 說明Description |
| FPC | 1 | V cc | Hall電源輸入：+5VDC ~ +24VDC |
| 2 | Hall W | ||
| 3 | Hall U | ||
| 4 | Hall V | ||
| 5 | GND | Hall 接地 | |
| 6 | Phase W | ||
| 7 | Phase V | ||
| 8 | Phase U |
| 電機型號 | 極 數 | 相 數 | 額定電壓 | 空載轉速 | 額定轉速 | 額定轉矩 | 額定功率 | 峰值轉矩 | 峰值電流 | 線電阻 | 線電感 |
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| VDC | r/min | r/min | mN.m | W | mN.m | A | ohms | mH | |||
| FL20BLW14-12V-5105A | 8 | 3 | 12 | 9530 | 5170 | 7.59 | 5 | 19 | 1.62 | 7.2 | 0.62 |
| FL20BLW14-24V-5105A | 8 | 3 | 24 | 9530 | 5220 | 4.74 | 5 | 20 | 0.85 | 26.1 | 0.2.6 |
配置FL20BLW14-12V-5105A無刷直流電機 FL20BLW14-12V-5105A BLDC Motor
| 減 速 比 Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | |
| 減速級數 Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | |
| 減速器長度(L) Length(L) | mm | 25.4 | 25.4 | 34 | 34 | 34 | 42.4 | 42.4 | 42.4 | 42.4 | 50.8 | 50.8 | 50.8 |
| 空載轉速 No-load speed | r/min | 2534 | 1815 | 671 | 495 | 348 | 184 | 132 | 94 | 68 | 50 | 36 | 25 |
| 額定轉速 Rated speed | r/min | 1394 | 998 | 369 | 272 | 191 | 101 | 73 | 52 | 37 | 27 | 20 | 14 |
| 額定轉矩 Rated torque | N.m | 0.025 | 0.035 | 0.086 | 0.12 | 0.17 | 0.28 | 0.39 | 0.55 | 0.77 | 0.93 | 1.3 | 1.5 |
| 最大瞬間允許負載Max. permissible load in a short time | N.m | 0.4 | 0.4 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
配置FL20BLW14-24V-5105A無刷直流電機 FL20BLW14-24V-5105A BLDC Motor
| 減 速 比 Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | |
| 減速級數 Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | |
| 減速器長度(L) Length(L) | mm | 25.4 | 25.4 | 34 | 34 | 34 | 42.4 | 42.4 | 42.4 | 42.4 | 50.8 | 50.8 | 50.8 |
| 空載轉速 No-load speed | r/min | 2534 | 1815 | 671 | 495 | 348 | 184 | 132 | 94 | 68 | 50 | 36 | 25 |
| 額定轉速 Rated speed | r/min | 1407 | 1008 | 373 | 275 | 193 | 102 | 74 | 52 | 38 | 28 | 20 | 14 |
| 額定轉矩 Rated torque | N.m | 0.026 | 0.036 | 0.088 | 0.12 | 0.17 | 0.29 | 0.4 | 0.57 | 0.79 | 0.95 | 1.3 | 1.5 |
| 最大瞬間允許負載Max. permissible load in a short time | N.m | 0.4 | 0.4 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
