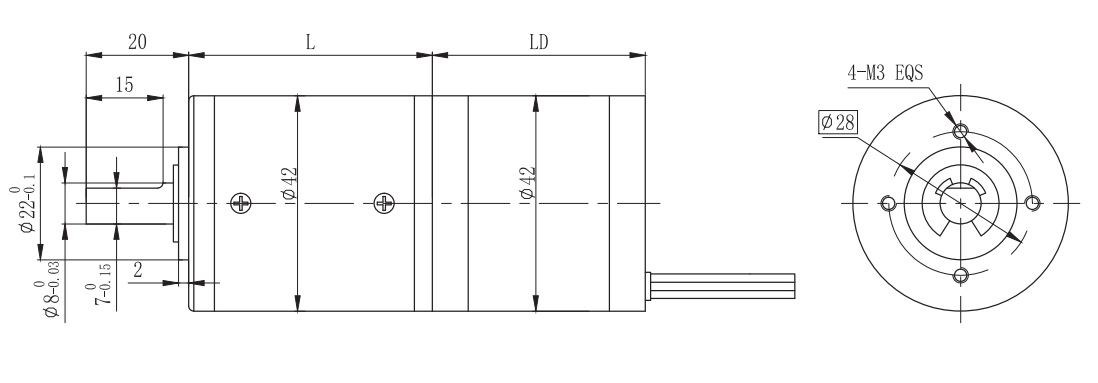

外形尺寸
資料下載
聯系合作BLDC Planetary Gear Moto （Ring Gear Material: Metal）
| 型號 | 范圍 |
FL42RBL/42JMG50K | Φ42行星減速器，允許轉矩范圍：0.5N.m~5.0N.m 42mm OD Planetary Gearbox, Permissible Load Range: 0.5N.m~5.0N.m |
| U | V | W | Vcc | Ha | Hb | Hc | GND |
| 紅Red | 棕Brown | 黑Black | 藍Blue | 黃Yellow | 棕Brown | 紅Red | 綠Green |
| UL1007 AWG22 | UL1007 AWG26 | ||||||
| 電機型號 | 極 數 | 相 數 | 額定電壓 | 空載轉速 | 額定轉速 | 額定轉矩 | 額定功率 | 峰值轉矩 | 峰值電流 | 電阻 | 電感 |
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| VDC | r/min | r/min | mN.m | W | mN.m | A | ohms | mH | |||
| FL42RBL30-2455 | 8 | 3 | 24 | 5500 | 4000 | 20 | 8.4 | 60 | 1.7 | 5.9 | 5.1 |
| FL42RBL60-2454 | 8 | 3 | 24 | 5400 | 4200 | 56 | 25 | 170 | 4.4 | 1.6 | 1.94 |
配置FL42RBL30-2455無刷直流電機 (LD=30mm) FL42RBL30-2455 DC Brushless Motor(LD=30mm)
| 減 速 比 Reduction ratio | 3.8 | 4.9 | 15 | 19 | 24 | 56 | 71 | 91 | 116 | 212 | 271 | 346 | 442 | 565 | |
| 減速級數 Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
| 減速器長度(L) Length(L) | mm | 35.2 | 35.2 | 45.7 | 45.7 | 45.7 | 56 | 56 | 56 | 56 | 66.3 | 66.3 | 66.3 | 66.3 | 66.3 |
| 空載轉速 No-load speed | r/min | 1440 | 1127 | 367 | 289 | 229 | 98 | 77 | 60 | 47 | 26 | 20 | 16 | 12 | 9.7 |
| 額定轉速 Rated speed | r/min | 1047 | 820 | 267 | 211 | 167 | 71 | 56 | 44 | 34 | 19 | 15 | 12 | 9 | 7.1 |
| 額定轉矩 Rated torque | N.m | 0.07 | 0.09 | 0.24 | 0.31 | 0.39 | 0.82 | 1 | 1.3 | 1.7 | 2.8 | 3.5 | 4.5 | 5 | 5 |
| 最大瞬間允許負載Max. permissible load in a short time | N.m | 1.5 | 1.5 | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15 | 15 |
配置FL42RBL60-2454無刷直流電機(LD=60mm) FL42RBL60-2454 DC Brushless Motor(LD=60mm)
| 減 速 比 Reduction ratio | 3.8 | 4.9 | 15 | 19 | 24 | 56 | 71 | 91 | 116 | 212 | |
| 減速級數 Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | |
| 減速器長度(L) Length(L) | mm | 35.2 | 35.2 | 45.7 | 45.7 | 45.7 | 56 | 56 | 56 | 56 | 66.3 |
| 空載轉速 No-load speed | r/min | 1414 | 1107 | 360 | 264 | 225 | 96 | 76 | 59 | 47 | 25 |
| 額定轉速 Rated speed | r/min | 1099 | 861 | 280 | 221 | 175 | 75 | 59 | 46 | 36 | 20 |
| 額定轉矩 Rated torque | N.m | 0.19 | 0.25 | 0.68 | 0.86 | 1.1 | 2.3 | 2.9 | 3.7 | 4.7 | 5 |
| 最大瞬間允許負載Max. permissible load in a short time | N.m | 1.5 | 1.5 | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 15 |
